Clipping machine B-GF1

  • easy to use
  • very low clip cost
  • flat or round frames

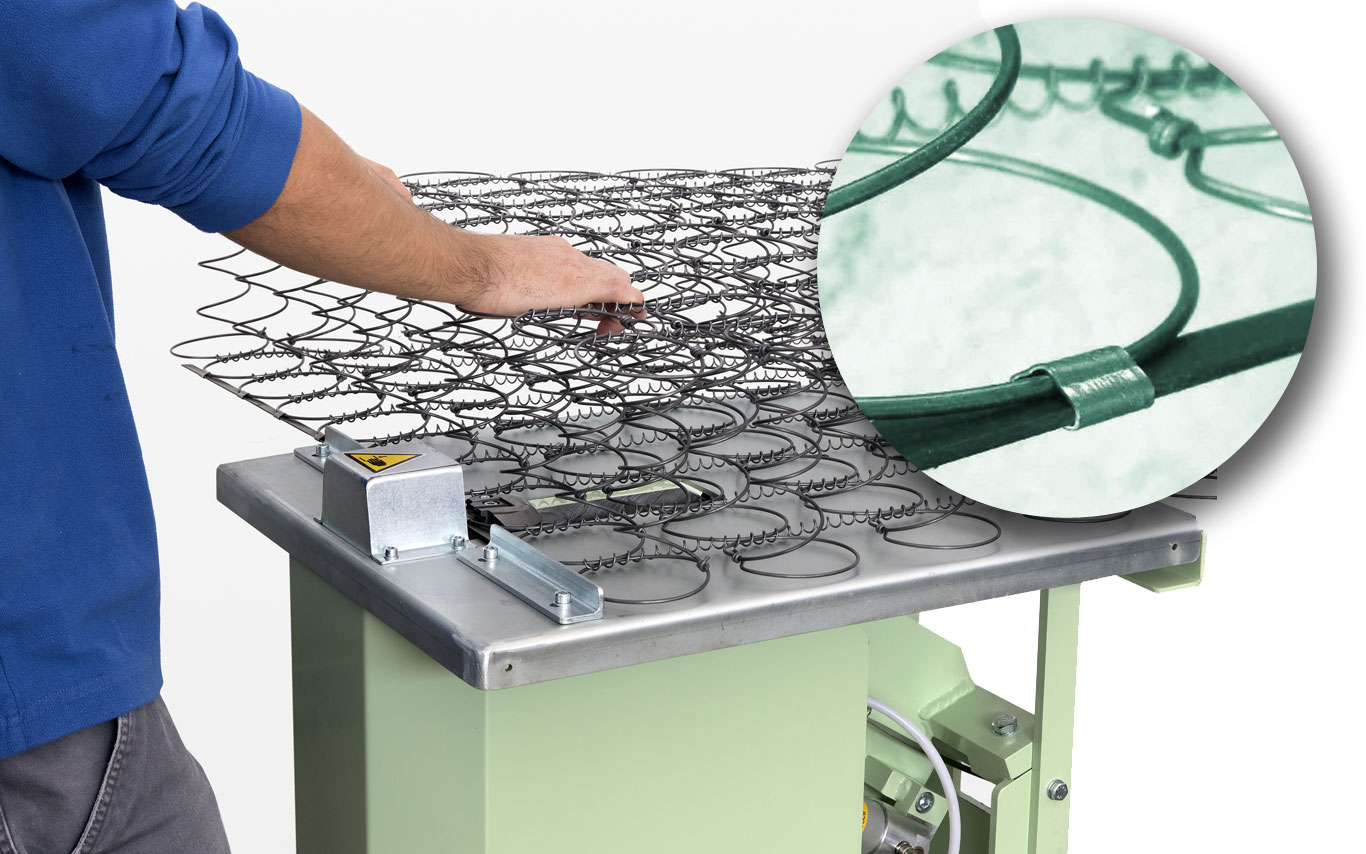

With the B-GF1 clipping machine, two steel frames are stapled onto a Bonnell spring unit. The special feature of the machine is that the staple material is very economical because the individual clips are produced continuously from a steel strip. It adapts to various rod or strip sizes. A semi-automatic function adaptable to the operator’s capacity facilitates work. The machine is powered by compressed >air and is supplied without a workbench, which can be made to customer requirements.

Technical data

  • production

    up to 30 single spring units/hour,
    depending on the skill of the operator

  • round frame wire diameter

    3,5 - 5,0 mm

  • flat frame strip size

    width: 6 - 10 mm
    thickness: 1,4 - 1,8 mm

  • clipping material steel strip size

    width: 10 mm
    thickness: 0,6 - 0,7 mm

  • tensile strength clip strip

    40 kg/mm2

  • spring end ring diameter DFi

    70 - 90 mm

  • spring wire diameter

    1,9 - 2,4 mm

  • min./max. diameter clip strip roll

    300/700 mm

  • air supply pressure

    6 bar

  • compressed air consumption

    17 m³/hour

  • machine size

    560 x 450 x 920 mm

  • clip strip unwinder size

    310 x 740 x 850 mm

  • weight of the machine

    120 kg

  • weight of the clip strip unwinder

    30 kg

  • size of working area

    5500 x 4500 mm

Are you interested in the clipping machine?
